There is a typo at
https://github.com/joomla/joomla-cms/blob/4.0-dev/administrator/components/com_workflow/Model/TransitionsModel.php#L143-L144

The semicolon show be in the second line

Also there seams to be missing string translations/renamings in transition

https://github.com/joomla/joomla-cms/blob/4.0-dev/administrator/components/com_workflow/Table/StageTable.php#L69
should be $stage

In the SQL update script you changed the last line

SELECT `id`, CASE WHEN `stage` = -2 THEN 3 WHEN `stage` = 0 THEN 1 WHEN `stage` = 2 THEN 4 ELSE 2 END, 'com_content' FROM `#__content`;

The stage column here references the state column in #__content so it have to stay state

JHtmlWorkflowStage is missing, file and class is in lib/cms/html/workflowstate.php

oh lib/cms/html/workflowstate.php only got converted partly.

In line 62 wrong name

		$workflowStates = array();

in line 70 the first variable is wrong

			if (!array_key_exists($workflowStateKey, $workflowStages))

This file should have been replaced already by workflowstage. I'll Repeating the changes. Thank you.

libraries/src/Form/Field/TransitionField.php

workflow_state is wrong, also in the query some lines later

$workflowState = $this->element['workflow_state'] ? (int) $this->element['workflow_state'] : (int) $jinput->getInt('id', 0);

administrator/components/com_content/Model/ArticleModel.php line 545 is crying Notice: Undefined property: stdClass::$state_id

also it sets 'workflow_state' not sure if this is correct but I don't think so.

administrator/components/com_content/Model/ArticleModel.php:827

					->where($db->quoteName('wt.to_state_id') . ' = ' . $db->quoteName('ws.id'))

is wrong

administrator/components/com_content/Model/ArticleModel.php:913

					$stateId = (int) $workflow->state_id;

some lines later:

			// If we have a new state, create the workflow association
			if (!empty($stateId))
			{
				$workflow->createAssociation($this->getState($this->getName() . '.id'), (int) $stateId);
			}

administrator/components/com_content/Model/ArticleModel.php:1222

					->select($db->quoteName('ws.id', 'state_id'))

You still can't save an article with this PR on :) - that's due to this one #21566 (comment) i think

Indeed
Call to undefined method stdClass::createAssociation()

Checked: remain many occurences of $workflowState instead of $workflowStage, including the name of the file
/libraries/cms/html/workflowstate.php instead of workflowstage.php

EDIT: for the name of the file, it looks it is done in the PR. (Eclipse can't move files when applying patches.)

Also $stateId instead of $stageId

After correcting these I can save articles here.

This may help correcting $workflowState

/administrator/components/com_content/Model/ArticlesModel.php:322: 		$workflowState = (string) $this->getState('filter.state');
/administrator/components/com_content/Model/ArticlesModel.php:324: 		if (is_numeric($workflowState))
/administrator/components/com_content/Model/ArticlesModel.php:326: 			$query->where('wa.stage_id = ' . (int) $workflowState);
/administrator/components/com_content/Model/ArticlesModel.php:341: 		elseif (!is_numeric($workflowState))
/administrator/components/com_content/Model/FeaturedModel.php:160: 		$workflowState = (string) $this->getState('filter.state');
/administrator/components/com_content/Model/FeaturedModel.php:162: 		if (is_numeric($workflowState))
/administrator/components/com_content/Model/FeaturedModel.php:164: 			$query->where('wa.stage_id = ' . (int) $workflowState);
/administrator/components/com_content/Model/FeaturedModel.php:173: 		elseif (!is_numeric($workflowState))

and for $stateId

/administrator/components/com_content/Model/ArticleModel.php:891: 			if (empty($stateId))
/administrator/components/com_content/Model/ArticleModel.php:924: 				$workflow->createAssociation($this->getState($this->getName() . '.id'), (int) $stateId);

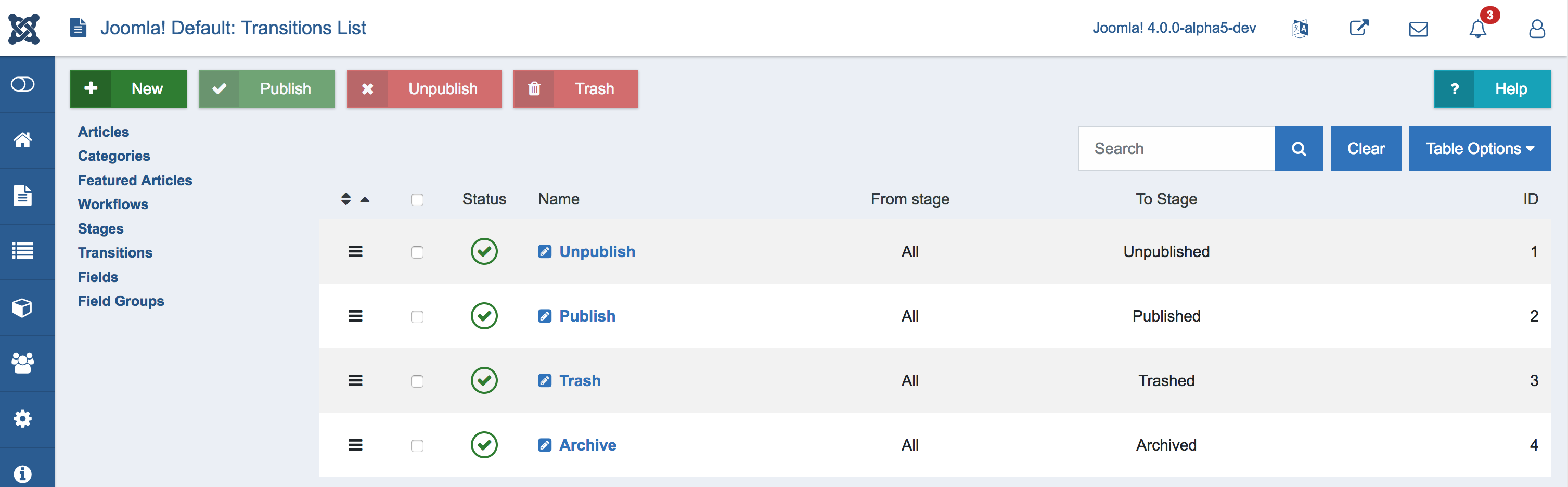

Are Default transitions supposed to be this?

If yes, this PR is fine for me (have not tested all possibilities, but no major error.)

I have tested this item ✅ successfully on 9d4458c

Thanks for all the great collaboration here guys :) much appreciated!

I have tested this item ✅ successfully on 9d4458c

No errors found so far.

I have tested this item ✅ successfully on 9d4458c

No errors found so far.

complete failure for me with 500 error as soon as you save an article

do you have more debug information? for me this works perfectly :-(

As soon as you create an article you get this everytime you try to go to
administrator/index.php?option=com_content

Error 500: JHtml workflowstage not found.

# | Function | Location
-- | -- | --
1 | () | JROOT\libraries\src\HTML\HTMLHelper.php:164
2 | Joomla\CMS\HTML\HTMLHelper::_() | JROOT\layouts\joomla\html\batch\workflowstage.php:31
3 | include() | JROOT\libraries\src\Layout\FileLayout.php:127
4 | Joomla\CMS\Layout\FileLayout->render() | JROOT\libraries\src\Layout\LayoutHelper.php:73
5 | Joomla\CMS\Layout\LayoutHelper::render() | JROOT\administrator\components\com_content\tmpl\articles\default_batch_body.php:49
6 | include() | JROOT\libraries\src\MVC\View\HtmlView.php:386
7 | Joomla\CMS\MVC\View\HtmlView->loadTemplate() | JROOT\administrator\components\com_content\tmpl\articles\default.php:338
8 | include() | JROOT\libraries\src\MVC\View\HtmlView.php:386
9 | Joomla\CMS\MVC\View\HtmlView->loadTemplate() | JROOT\libraries\src\MVC\View\HtmlView.php:191
10 | Joomla\CMS\MVC\View\HtmlView->display() | JROOT\administrator\components\com_content\View\Articles\HtmlView.php:149
11 | Joomla\Component\Content\Administrator\View\Articles\HtmlView->display() | JROOT\libraries\src\MVC\Controller\BaseController.php:679
12 | Joomla\CMS\MVC\Controller\BaseController->display() | JROOT\administrator\components\com_content\Controller\DisplayController.php:59
13 | Joomla\Component\Content\Administrator\Controller\DisplayController->display() | JROOT\libraries\src\MVC\Controller\BaseController.php:717
14 | Joomla\CMS\MVC\Controller\BaseController->execute() | JROOT\libraries\src\Dispatcher\Dispatcher.php:162
15 | Joomla\CMS\Dispatcher\Dispatcher->dispatch() | JROOT\libraries\src\Component\ComponentHelper.php:354
16 | Joomla\CMS\Component\ComponentHelper::renderComponent() | JROOT\libraries\src\Application\AdministratorApplication.php:111
17 | Joomla\CMS\Application\AdministratorApplication->dispatch() | JROOT\libraries\src\Application\AdministratorApplication.php:154
18 | Joomla\CMS\Application\AdministratorApplication->doExecute() | JROOT\libraries\src\Application\CMSApplication.php:242
19 | Joomla\CMS\Application\CMSApplication->execute() | JROOT\administrator\includes\app.php:63
20 | require_once() | JROOT\administrator\index.php:36

https://github.com/joomla/joomla-cms/blob/4.0-dev/libraries/cms/html/workflowstage.php

This is environmentally broken.

Because this uses the Joomla autoloader, which is based on camel casing of class names, the class name MUST be JHtmlWorkflowstage otherwise it will NOT work consistently across environments.

OR, to keep the class casing the way it is, you must place the file at libraries/cms/html/workflow/stage.php.

@mbabker but this doesn't seams to be the problem because the file called JHtml key is 'workflowstage.existing' and the file is also lowercase only the class is SnakeCase so whats the reason it works for me and not for brian?

And when (both of) you step through all the autoloaders and whatnot what path and class name are trying to be resolved? This is PHP here, it is very well possible for the right file to be loaded in but the class still be considered missing (which is basically what this error is) because the JHtml library is expecting to find JHtmlWorkflowstage and the class is declared JHtmlWorkflowStage.

So this should be fixed by this #21597 PR.
